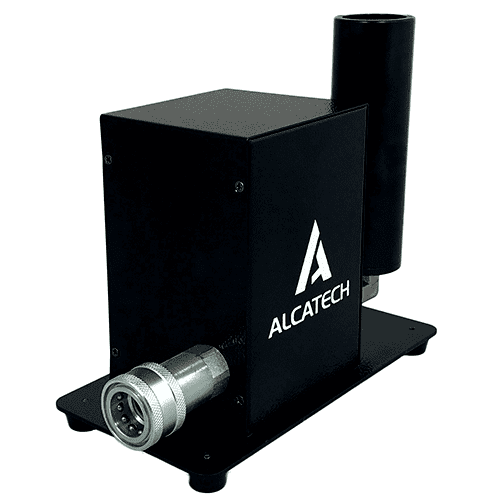

Co2 FX Jet

The Alcatech Co2 FX Jet is a Co2-based effects device. Using a Co2 bottle, the FX Jet generates a Co2 smoke column of up to 8 meters.

The Alcatech Co2 FX Jet is a Co2-based effects device. Using a Co2 bottle, the FX Jet generates a Co2 smoke column of up to 8 meters. The device was specially developed for shows on stages, in clubs and similar events and generates refreshing fog columns which evaporate again immediately after exiting. You can take the required Co2 gas from a Co2 bottle with a riser tube. You can control the Co2 FX Jet via the DMX512 protocol and using a standard DMX controller. You have the option of transmitting the signal via a 3-pin XLR connector. The scope of delivery includes a 6 meter high-pressure hose which connects the device to a Co2 bottle. For the power supply, the Co2 FX Jet is connected to the mains via the included Powercon power cable and can supply power to other devices with a Powercon bridge cable. You can set the DMX address via the digital DMX control panel on the device.

Technical specifications:
Voltage: AC 110-220V 50/60Hz
Ejection height: up to 8M
maximum pressure: 96.5 bar
Output: 60° - 90° Mode: DMX/Manual Signal: DMX 512
DMX channels: 1
Effect times: up to 10 seconds. DMX connection: 3-pin XLR input and output
Power connection: Powercon input and output
Safety distance: 2m radius / 7m height
Weight: 3.5 kg Dimensions: 275x2125x230 mm
Power consumption: 30W

Consumption: Liquid Co2 (bottle with riser)
27 liter bottle: approx. 40 seconds of continuous operation
40 liter bottle: about 70 seconds of continuous operation

Scope of delivery:
Co2 Fx Jet 6 meter high pressure hose
2 meter DMX cable
Powercon power cord
operation manual
