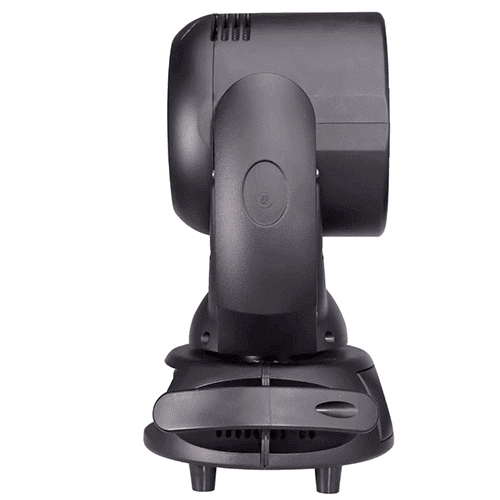

7x40W LED Wash Zoom Moving Head

With a total output power of 280 watts, this device is a powerful wash moving head

Small powerhouse: The total output power of this moving head is 280 watts. And the headlight does not skimp on functions either!

The 7×40 W LED Wash Zoom Moving Head is ideal for stage technicians who value compact dimensions and still do not want to compromise in terms of luminosity and functionality. In addition to the 40 watt LEDs, the moving head shines, for example, with a motorized front panel that enables zooming so that the beam angle can be varied between 5 and 50 degrees. Thanks to the LED mapping function, it is also possible to control the pixels individually. Speaking of control: The control elements are automatic switching, a sound mode, master/slave management and the DMX 512 standard - optionally via 11, 14 or 18 DMX channels. A mounting bracket is included with the set so that you can operate the 7×40 W LED Wash Zoom Moving Head both in a standing position and attach it to a truss. If you buy this moving head, we will be at your side with help and advice during assembly and commissioning.

Technical data:
Light source: 7x40 Watt RGBW 4in1 LEDs
Power consumption: 320 watts
Power supply: 100-240 V - 50/60 Hz
Luminous flux: 2740 lumens
Beam angle: 5°- 50°
Zoom: motorized linear zoom system
Function: Separate control of the LEDs, pre-programmed effects, effect change, excellent color macro effect
Dimmer: 0-100% linear
Strobe: variable strobe effects
Operation: faster, quieter and flicker-free operation
DMX channels: 11/14/15 channels
Control: DMX 512, master/slave, music controlled
Pan/Tilt: 540°/225°
Pan/Tilt Precision: 16-bit precision scanning
Display: LCD display
DMX connectors: 3 pin in and out, 5 pin in and out
Power Connections: Powercon input
Mounting type: mounting bracket
Degree of protection: IP20
Weight: 8 kg
Dimensions: 310x183x412mm

Scope of delivery:
7x40W LED Moving Head
Powercon power plug
operating manual
