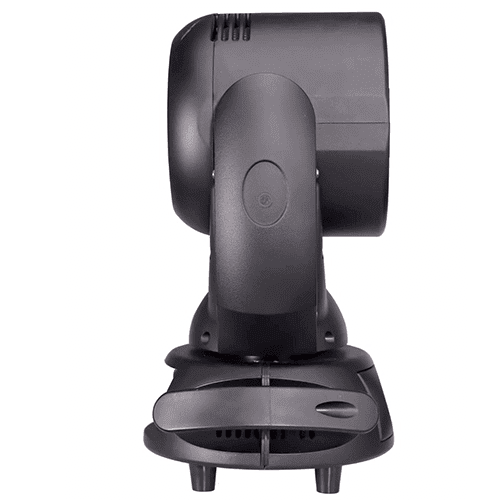

19x15W LED Wash Moving Head

With a total output power of 285 watts, this device is a powerful wash moving head

Power meets function: With the 19×15 W LED wash moving head, you have a powerful spotlight with numerous modes at your disposal.

The obvious unique selling point of this moving head is its high overall performance: the 19 LEDs add up to a light source with a power of 285 watts. Advantage: The spotlight can generate effective light shows even in bright surroundings, as the rays are clearly distinguished from the background. The 19×15 W LED Wash Moving Head also has a number of subtleties that fully illustrate the potential of the multifunctional device. This includes, for example, a motorized front panel that enables stepless zooming and a circle function, i.e. the 4in1 RGBW LED chips can be illuminated in a ring shape. Thanks to the beam angle between 10 and 60 degrees, both a scattered and pinpoint illustration is possible. The control elements are automatic switching, a sound mode, master/slave management and the DMX 512 standard - optionally via 14, 26 or 30 DMX channels. Regardless of its impressive weight, the 19×15 W LED wash moving head can be installed on a truss – the included high-quality mounting bracket makes it possible. If you buy this moving head from us, you can be sure of extensive support: If you have any questions about installation and operation, we are always at your disposal.

Technical data:
Light source: 19x15 Watt RGBW 4in1 LEDs
Power consumption: 300 watts
Power supply: 100-240 V - 50/60 Hz
Luminous flux: 3364 lumens
Beam angle: 10°- 60°
Zoom: motorized linear zoom system
Function: Circle Function, pre-programmed effects, effect change, excellent color macro effect
Dimmer: 0-100% linear
Strobe: variable strobe effects
Operation: faster, quieter and flicker-free operation
DMX channels: 14/26/30 channels
Control: DMX 512, master/slave, music controlled
Pan/Tilt: 540°/270°
Pan/Tilt Precision: 16-bit precision scanning
Display: LCD display
DMX connectors: 3 pin input and output
Power connectors: Powercon input and output
Mounting type: mounting bracket
Degree of protection: IP20
Weight: 9 kg
Dimensions: 310x183x393mm

Scope of delivery:
19x15W LED Moving Head
Powercon power plug
operating manual
